三桶桶夾

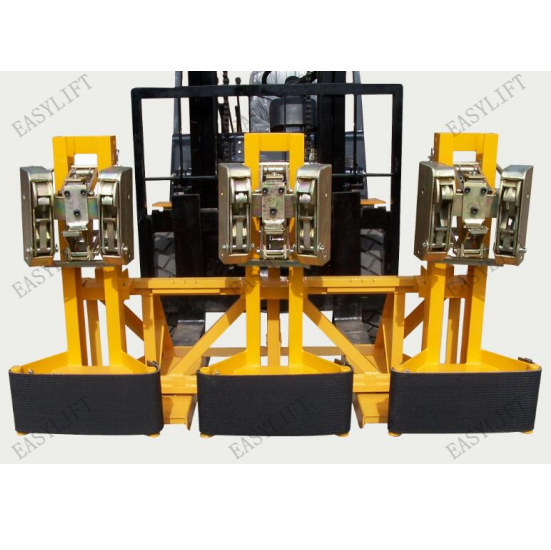

三桶重型桶夾（型號：3DE）

產品名稱(Description)：三桶重型桶夾
產品型號(Model)：3DE
鷹嘴類型(Eagle-Grip)：雙鷹嘴DE
產品自重(Weight)： 275 kg
鐵桶單重(Steel Drum)：1000 kg
塑料桶單重(Plastic Drum)：400 kg
外形尺寸(Dimensions)(LxWxH)：1220x1630x990 mm
叉車噸位(Forklift)： 2.5-5T

在線咨詢

產品詳情

采用美國技術生產，技術領先

鷹嘴采用美國超強特殊材料制作，經久耐用

雙鷹嘴鷹頭，適應標準直徑585mm

左右的圓桶(

有桶邊、直上直下型)

定制雙鷹嘴鷹頭，可適應某一種非標直徑的圓桶（有桶邊）

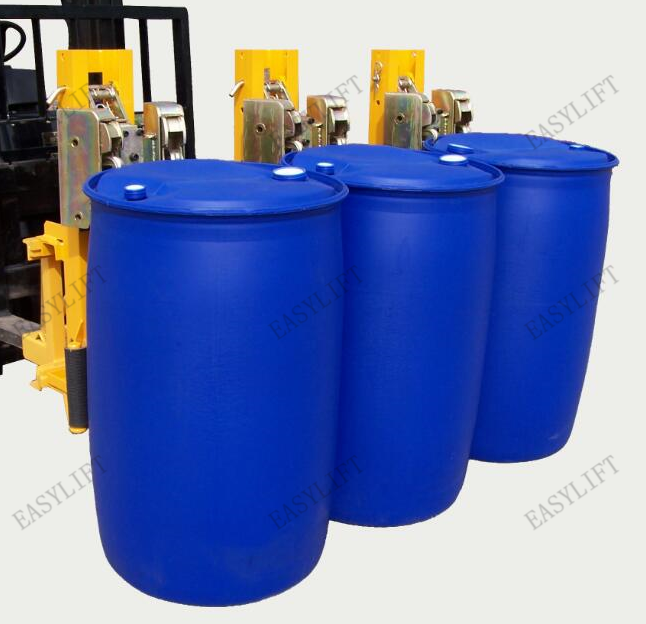

定制雙鷹嘴鷹頭，可適應雞蛋型、高桶蓋、開口、塑料圓桶(

德國毛瑟桶)(

有桶邊)

可配備防靜電鷹嘴，用于SRJ

普通防爆環境

可對桶夾進行完全防爆改裝，用于 EX

高要求防爆環境。并提供國家認證防爆合格證書

標配防靜電皮帶BC

，對圓桶提供很好的支撐和保護，防止對桶壁造成刮傷、碰癟和刺破。

與標準3米升高叉車配合，可在地面上，對卡車進行2

層桶的堆碼

采用全自由門架叉車，在集裝箱等狹小環境內進行2

個桶高的堆碼(

普通叉車只能堆碼1

層桶)

桶夾操作要領：傾斜叉車門架，很重要！?。?/strong>
在抓桶之前，需要將叉車門架前傾，這是因?yàn)槿绻洸婧烷T(mén)架后傾，皮帶會首先與桶接觸而使鷹頭不能接觸到桶邊，不能完成抓桶動作。
在抓取桶以后，請將門架向后傾斜，使桶處于垂直狀態，然后開動叉車將桶安全地運送到需要的地方。
在釋放油桶時，也需要將門架適當前傾。

Leading technology and patents from USA
Long life Eagle-Grip jaws made from USA special alloy material

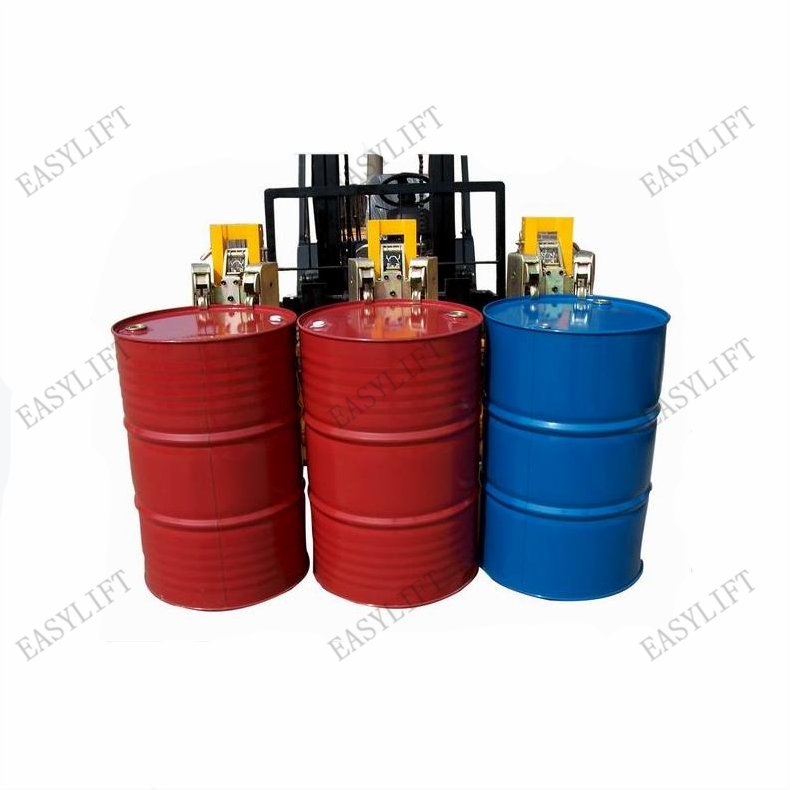

Double Eagle-Grip heads, to handle standard drums in 585mm±20mm diameters (with straight wall and top rings)
Custom-Made double Eagle-Grip heads, to handle drums in a particular diameter (with top rings)
Custom-made,single or double Eagle-Grip heads, to handle egg-shaped, open-top plastic drums (with top rings)（German Mauser-style）
Spark-Resistant Jaws （SRJ）for spark-resistant areas.
The whole attachment can be custom-made,for explosion-proof (EX) areas.

Anti-static cushion Belt Cradle （BC）, for better support and protection to drums.

With a 3M-lift forklift truck,the attachment can do two stacks of drums on trucks from the floor.
With a free-mast lift truck, the attachment can do two stacks of drums in ISO containers. (One stage-mast forklift can do just one stack only.)

Key Notes: Tilting the carriage of the forklift forward and back is very important to operate the drum handler.
In order to pick up drums, just tilt the carriage of the lift-truck slightly forward, so that the clamping heads can make contact on the drums.
After the drums are picked up, the drums can then be tilted back in straight position,for transport.
In order to release the drums, the operator should again tilt the carriage of the lift-truck slightly forward.
